Series PC Transfer pump

PC Transfer pump

Progressing cavity process pump, compact for space saving. For pumping wastewater sludge, effluents and shear sensitive fluids in municipal and industrial process applications.

Construction

Materials of construction, available in cast iron or stainless steel, with a choice of rotor and stator materials to suit individual applications e.g. hard chrome plated rotor or natural rubber stator.

Applications

Typical applications for the PC transfer pump include:

  • Municipal and Industrial effluents
  • Sludge transfer processes
  • Shear sensitive processes
  • Hydrated lime slurry
  • Industrial chemicals and detergents
  • Paper stocks
  • Starch slurries
  • Ground water with manganese
  • Agricultural effluent and farm waste slurries

Features

  • As the drive forms an integral part of the unit, the pump is ideal for space-saving installations.
  • Gentle pumping action, minimises shear and crush damage to the pumped product.
  • Surface mounted, making it easier, cleaner and less hazardous for maintenance.
  • Up to 8.5 m suction lift, deep sumps can be easily pumped.
  • Plug-in shaft, ease of maintenance when assembling or dismantling, with extraction facility.
  • Viscous fluid products can be supplied with a square inlet and conveyor to assist viscous slurries into the pumping element.
  • Inspection cover, available for applications where known rag content is a problem.
  • Supplied with a baseplate to ease installation, or option without baseplate.
  • Sealed joints, fully sealed drive train to maximise life and minimise downtime.
  • Shaft sealing options, packed gland or single and double mechanical seals are available.
  • Versatile, can be installed vertically or horizontally to suit the application. Can be run in either direction.

Motor / drives

  • Robust drives, specially selected drives and gearboxes for longer life. Options include electric motor drive units supplied as direct-coupled or variable speed drives with mechanical variable speed or frequency inverter.
  • Low running speeds, reduced wear for a longer working pump life which extends the periods between routine maintenance. Important in abrasive applications.

Performance

Capacity, for flows up to 440 m3/h and differential pressure up to 24 bar, to operate in a range of process temperatures from -10 °C, up to 100 °C.

Performance data



m3/h = capacity. Bar = differential pressure.

Materials

Description

Material

Pamp casing

Cast iron, BS EN 1561 grade EN-GJL-HB195, or cast stainless steel, BS 3100 grade 316C 16F

Rotor

Alloy steel, BS970 grade 708M40T/ 709M40T, with HCP 0.25 mm,

or 316 stainless steel BS EN 10088 grade X2CrNiMo17-12-2

Stator

See pump coding table

Drive shaft

Stainless steel BS EN 10088 grade X12Cr13/X2CrNi18-9

Coupling rod

Steel BS EN 10277, grade 20NiCrMoS2-2 hardened to 650-800Hv, or 316 stainless steel BS EN 10088,grade X2CrNiMo17-12-2

Mechanical

seals

Silicon carbide faces, viton o-rings (EPDM by special request), stainless steel 316 springs

Pump coding

Range Transfer C
Transfer Square inlet S
Size 1.3 m3/h @1750 rpm   1
3.3 m3/h @1750 rpm   2
10 m3/h @1500 rpm   3
13 m3/h @1500 rpm   X
22 m3/h @1000 rpm   4
37 m3/h @800 rpm   5
57 m3/h @700 rpm   6
79 m3/h @600 rpm   7
97 m3/h @500 rpm   8
125 m3/h @450 rpm   9
165 m3/h @400 rpm   A
225 m3/h @350 rpm   B
440 m3/h @270 rpm   C
310 m3/h @250 rpm   D
450 m3/h @250 rpm   E
Stages (max pressure) Single stage extended pitch, 4-6 Bar     L
Single stage, 6 Bar     1
Two stage, 12 Bar     2
Four stage, 24 Bar     4
Casing material Cast iron       C
Stainless steel       S
Rotation parts Alloy steel with HCP         1
Stainless steel AISI 316         2
Stainless steel AISI 316 + HCP         3
Rotor size Mk 0 (oversize)           Z
Mk 1 (standart)           A
Mk 3 (temperatire)           C
Mk 5 (temperature)           E
Stator material Natural             A
EPDM             E
High nitrile             J
Nitrile NBR             R
Fluoroelastomer / Viton             V
Hypalon             H
White NBR             W
Polyester based urethane             K
Polyester based urethane             Y
Seal type Mechanical seal               M
Packed gland               P
Build option A-size body                 1
B-size body                 2
Example   C X L C 3 A R M 2

Pump and wear part weights (kg)

Model Pump Stator Rotor Coupling Rod/Joint Shaft
C12 12.5 1.2 0.4 0.2 0.6
C14 14.5 2.6 0.8 0.2 0.6
C21 12.5  1.2  0.4  0.2 0.6
C22 14.5 2.6  0.8  0.2 0.6
C24 23.0  5.5  1.6  0.4 0.7
C31 18.0 1.3  1.5  0.4 0.7
C32 20.0  2.6  1.5  0.4 0.7
C3L 20.0 2.6  1.5  0.4 0.7
C34 32.0 5.3  2.9  1.2 1.7
CX1 28.0  2.1  1.6  0.4 0.7
CX2 31.0  5.6  2.8 0.4 0.7
CX4 57.0  10.4  5.5 2.6 3.1
CXL 32.0  5.1  2.7  0.4 0.7
C41/S41 34.0/36.0  3.5  2.6 1.2 1.7
C42 46.0  7.1  4.5 1.2 1.7
C44 72.0  14.0  9.2 2.4 3.1
C4L/S4L 42.0/50.0  7.1  4.5 1.2 1.7
C51/S51 50.0/49.0  6.3  4.9  1.2 1.7
C52 70.0  12.4  9.1 2.4 3.1
C54 106.0  24.5 18.0  4.9 4.4
C5L/S5L 57.0/56.0  12.3  8.8 1.2 1.7
C61/S61 77.0/75.0  11.0  8.4 2.4 3.1
C62 102.0  21.5  15.4  4.9 4.4
C64 180.0  42.5  30.2  12.3 8.7
C6L/S6L 94.0/84.0  5.0  15.3 2.4 3.1
C71/S71 107.0/103.0  17.4 13.3  4.9 4.3
C72 150.0  34.3  24.5  4.6 4.3
C74 252.0  68.0  48.9  15.3 8.7
C7L/S7L 148.0/146.0  34.3  24.5  4.6 4.3
C81/S81 113.0/108.0 23.1  17.9  6.2 4.3
C82 170.0 24.6  33.7  12.3 8.7
C84 291.0 87.0  65.7  15.3 9.5
C8L/S8L 172.0/167.0  45.0 33.0  6.2 4.3
C91 175.0  41.7  25.8  12.3 8.7
C92 286.0  65.9  47.6  12.3 8.7
C9L 270.0  67.2  47.6  12.3 8.7
CA1 215.0  37.4  38.8  12.3 8.7
CA2 355.0  74.4  72.4  15.3 9.5
CAL 301.0  74.4  71.4  12.3 8.7
CB1 349.0  64.5  68.1 15.3 9.5
CB2 650.0  130.0  132.5 21.7 35.4
CBL 473.0  122.9  126.8  15.3 9.5
CC1 650.0  85.0  129.1  21.7 35.4
CC2 950.0  186.1  263.6  21.9 35.4
CCL 950.0   186.1  263.6  21.9 35.4
CD1 680.0  121.4  171.3  21.7 35.4
CD2 862.0  176.0  186.0  21.7 35.4
CE2 12.13.0 451.0 262.0  21.7 35.4

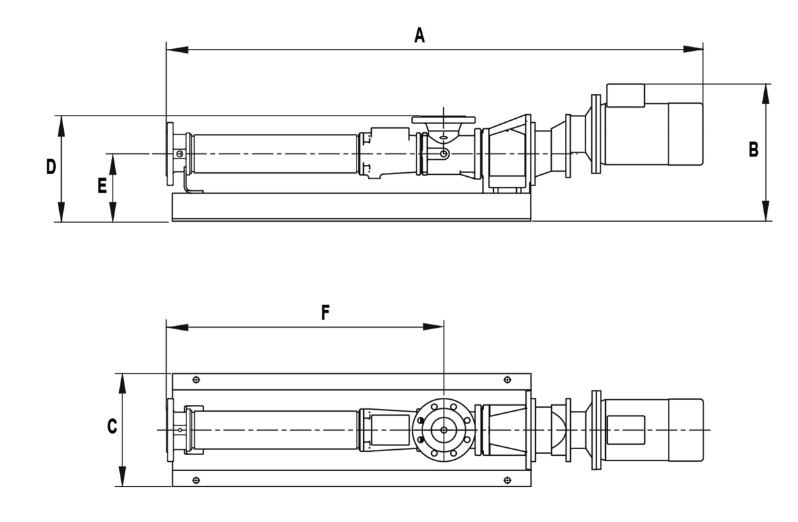

Motor/ Baseplate dimensions (mm)
