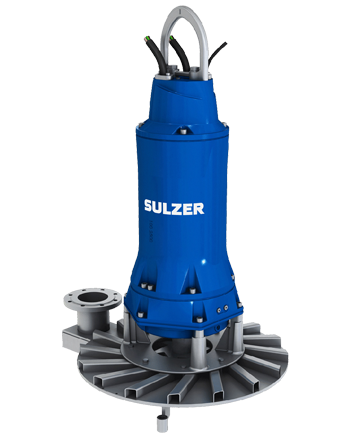

Sulzer submersible aerator XTA/XTAK
The submersible aerators XTA/XTAK are suitable for all gas-liquid reactions at temperatures below 70 °C and pressures below 2 bars absolute.
Applications in sewage and water treatment
Mixing and equalizing basins. Equalizing of wastewater pollution load and wastewater quantities, as well as avoidance of odor problems.
Activated sludge basins and SBR reactors. Biological degradation of organic substances.
Sludge stabilization. Avoidance of odor problems as well as further oxidation of the organic substances.
Flotation. Flotation of oil and grease. Lagoon aeration: Improvement of natural aeration.
Lagoon aeration. Improvement of natural aeration.
Neutralization. Neutralization of alkaline wastewater with CO2 or flue gas.
Special applications.
The submersible aerator is positioned on the bottom of the basin without anchorage. For maintenance and inspection work the aerator can be lifted by means of a mobile crane.
Construction
- Easy and quick installation without emptying the tank
- No aerosol effect and no sedimentation on the bottom of the basin
- Good oxygen transfer (SOTR) and aeration efficiency values (SAE)
- Self-cleaning system
- Replaceable wear parts

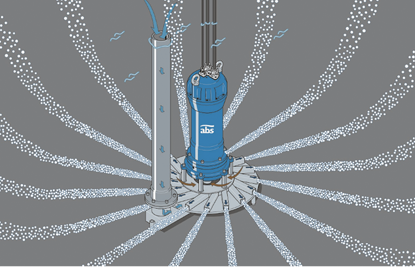

Operation principle
The submersible aerator XTA/XTAK is a submerged motor, blower, pump and mixer, all combined in one unit.
It consists of a star shaped impeller directly connected to the motor shaft, a stator surrounding the impeller as well as an air pipe to atmosphere. The impeller rotates inside the stator creating a vacuum and automatically aspirating air through the air pipe.
At the same time, water flows into the impeller, is thoroughly mixed with the air and radially discharged through the channels of the stator. This system ensures fine bubbles. XTAK = extended channels increase SOTR and SAE values up to 15- 20 %.
Materials
| Description |
Material |
| Motor housing |
EN-GJL-250(GG-25) |
| Motor shaft |
1.4021(AISI420) |
| Fasteners (in contact with medium) |
1.4401(AISI316) |
| Aerator parts (ТА152 - ТА602) |
1.4581(AISI316) |
| Aerator parts (ТА901 - ТА2400) |
1.4301(AISI304) |
| Bushing |
Bronze |
Options: Exposed aerator parts hard chrome plated. Special materials on request.
Technical data 400 V/50 Hz
| Hydraulics |
Motor |
Rated motorpower* |
Rated motorpower* |
Speed at50 Hz |
Ratedcurrent |
Immersion depth max. |
Weight |
| |
|
P1 kW |
P2 kW |
min-1 |
A |
m |
kg |
| XTA152 |
PE29/4 |
3.4 |
2.9 |
1410 |
6.4 |
3.0 |
105 |
| XTA152 |
PE 40/4 |
4.4 |
4.0 |
1410 |
8.4 |
5.0 |
105 |
| XTA302 |
PE60/4 |
6.7 |
6.0 |
1430 |
13.6 |
4.0 |
145 |
| XTA302 |
PE 90/4 |
9.9 |
9.0 |
1425 |
18.1 |
6.0 |
155 |
| XTA/XTAK602 |
PE110/4 |
12.0 |
11.0 |
1465 |
21.2 |
4.0 |
300/370 |
| XTA/XTAK602 |
PE160/4 |
17.9 |
16.0 |
1455 |
30.5 |
7.0 |
310/380 |
| XTA/XTAK901 |
PE 185/4 |
20.0 |
18.5 |
1458 |
35.2 |
4.5 |
455/510 |
| XTA/XTAK901 |
PE220/4 |
23.7 |
22.0 |
1460 |
40.3 |
8.0 |
455/510 |
| XTA/XTAK1200 |
PE220/4 |
23.7 |
22.0 |
1460 |
40.3 |
3.0 |
510/580 |
| XTA/XTAK1200 |
PE 300/4 |
32.1 |
30.0 |
1459 |
54.6 |
6.5 |
520/590 |
| XTA/XTAK1200 |
PE370/4 |
39.4 |
37.0 |
1460 |
68.1 |
8.5 |
535/605 |
| XTA/XTAK1800 |
PE370/4 |
39.4 |
37.0 |
1480 |
68.1 |
4.0 |
540/615 |
| XTA/XTAK1800 |
PE450/4 |
47.8 |
45.0 |
1480 |
81.0 |
6.0 |
545/620 |
| XTA/XTAK1800 |
PE550/4 |
58.1 |
55,0 |
1480 |
94.1 |
9.0 |
790/865 |
| XTA/XTAK2400 |
PE550/4 |
58.1 |
55.0 |
1480 |
94.1 |
4.0 |
820/895 |
| XTA/XTAK 2400 |
PE 750/4 |
78.9 |
75.0 |
1480 |
131.0 |
7.5 |
835/915 |
*P1 = Power taken from mains; P2 = Power at motor shaft

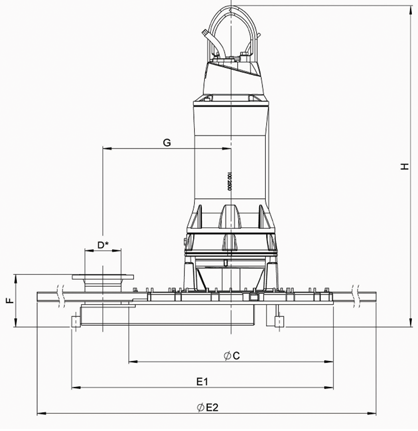

| Aerator |
Ø C |
D |
Ø E1 |
Ø E2 |
F |
G |
H |
|
TA 152
M 40/4
|
485 |
DIN
80
|
581 |
- |
169 |
242 |
695 |
|
TA 302
M 60/4
|
670 |
DIN
80
|
790 |
- |
178 |
347 |
687 |
|
TA 302
M 90/4
|
670 |
DIN
80
|
790 |
- |
178 |
347 |
735 |
|
TA/TAK
602 ME 110/4
|
714 |
DIN
100
|
862 |
3533 |
180 |
397 |
981 |
|
TA/TAK
602 ME 160/4
|
714 |
DIN
100
|
862 |
3533 |
180 |
397 |
981 |
|
TA/TAK
901 ME 185/4
|
840 |
DIN
125
|
1065 |
3845 |
250 |
510 |
1399 |
|
TA/TAK
901 ME 220/4
|
840 |
DIN
125
|
1065 |
3845 |
250 |
510 |
1399 |
|
TA/TAK
1200 ME 220/4
|
950 |
DIN
150
|
1215 |
3930 |
245 |
595 |
1405 |
|
TA/TAK
1200 ME 300/4
|
950 |
DIN
150
|
1215 |
3930 |
245 |
595 |
1405 |
|
TA/TAK
1200 ME 370/4
|
950 |
DIN
150
|
1215 |
3930 |
245 |
595 |
1405 |
|
TA/TAK
1800 ME 370/4
|
950 |
DIN
150
|
1215 |
4135 |
245 |
595 |
1396 |
|
TA/TAK
1800 ME 450/4
|
950 |
DIN
150
|
1215 |
4135 |
245 |
595 |
1396 |
|
TA/TAK
1800 ME 550/4
|
950 |
DIN
150
|
1215 |
4135 |
245 |
595 |
1617 |
|
TA/TAK
2400 ME 550/4
|
1050 |
DIN
150
|
1345 |
4025 |
270 |
650 |
1625 |
|
TA/TAK
2400 ME 750/4
|
1050 |
DIN
150
|
1345 |
4025 |
270 |
650 |
1825 |
