Channel Series

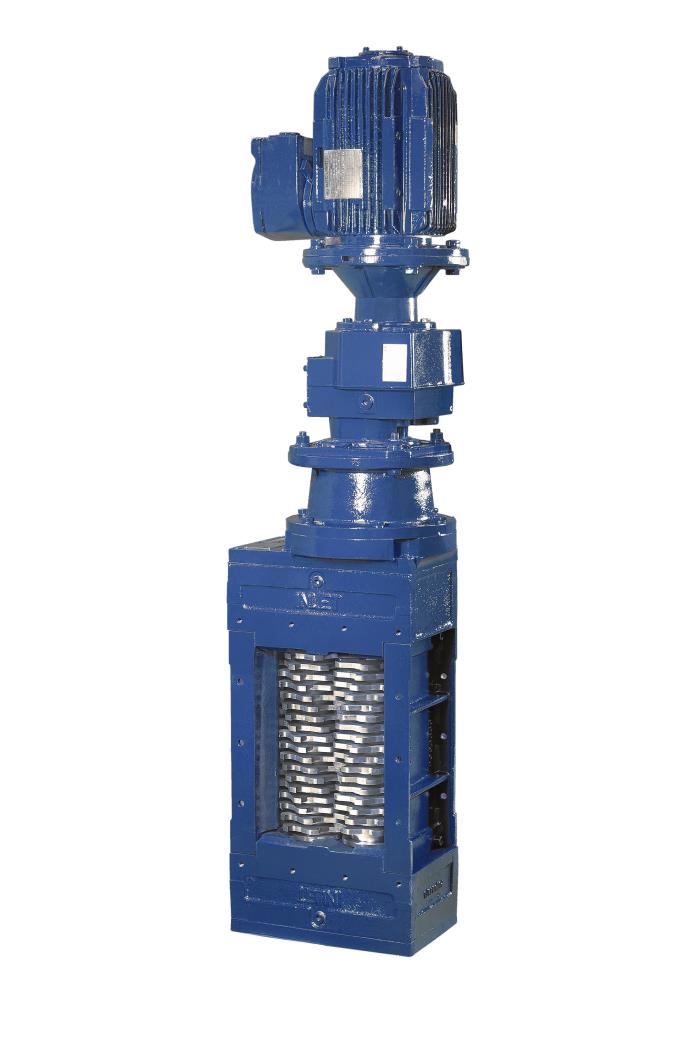

Sulzer macerator - channel series grinder

High torque, low speed macerator grinder, for in-flow disintegration of solids and fibrous materials in open channels as
downstream screening protection for sewage and sludge pumps in
wastewater treatment plants.

Construction

Twin shaft, channel macerator. Slow speed, high torque, fitted with interleaving cutters and spacers, in cutter bank lengths of 8 - 59"
(200 - 1500 mm). Designed for freestanding installation in existing channels.

Applications

Typical applications for the macerator - channel series grinder include:

  • Protection of pumps and systems in transport and treatment wastewater applications.
  • Imported sludge transfer applications.
  • Inlet works in-flow.
  • Industrial wet waste grinding and maceration.

Features

  • Robust and proven design. Low vibration and noise.
  • Available in motor sizes 2-, 3-, and 5.4 HP (1.5-, 2.2- and 4.0 kW).
  • Can be configured for connection to inlet and outlet flanges in pipeline installations (A02C - A06C only).
  • Hardened cutter tips at low running speeds ensures greatly reduced wear rates.
  • Available without drive unit.
  • Shafts operate at different speeds (typically 50 to 80 rpm) which creates a tearing action on solids by the cutters.

Motor / drives

  • Built-in overload protection prevents damage to the macerator.
  • Low running speeds reduces wear, for a longer working life, which extends the periods between routine maintenance - important in heavy cake applications.

Performance

Capacities up to 2752 gpm (625 m3/h) for Standard models, 3752 gpm (850 m3/h) for Hi-Flow models, and 5000 gpm (1150 m3/h) for Extra Hi-Flow models

KEY CHARACTERISTICS

Capacities

Up to 1,150 m3/h

Speeds (rpm)

Model

Maximum shaft speeds

Throat

Throat size

2 HP (1,5 kW)

3 HP 2,2 (kW)

5,4 HP 4,0 (kW)

A02CA

200











 42&69





















 40&66





















 51&83











A03CA

300

A05CA

500

A06CA

600

A10CA

1000

A15CA

1500

Materials

Description Material
Casing Cast iron, optional stainless steel or gun metal
Catters and spacers Investment cast stainless steel
Shafts Hexagonal section alloy steel hardened to 55-59 HRC. Optional ferralium or stainless steel
Mechanical seals Tungsten carbide seal faces housed in stainless steel cartridge

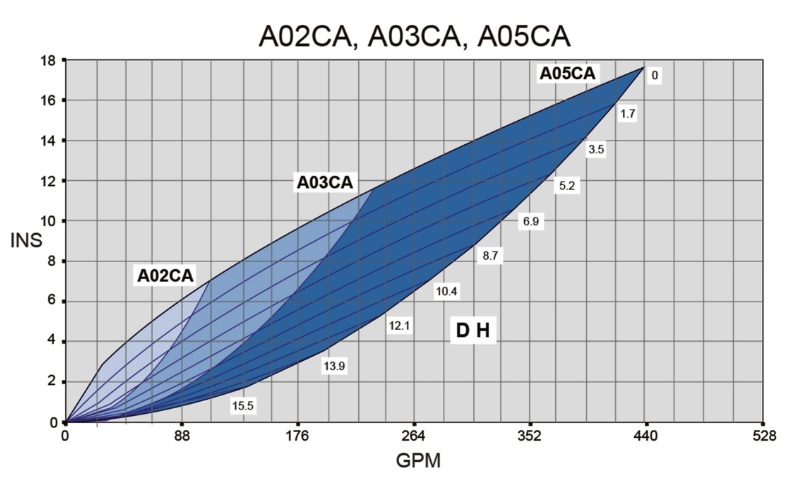

Performance curves



mm = head drop. m3/h = capacity (raw sewage). DH = downstream head

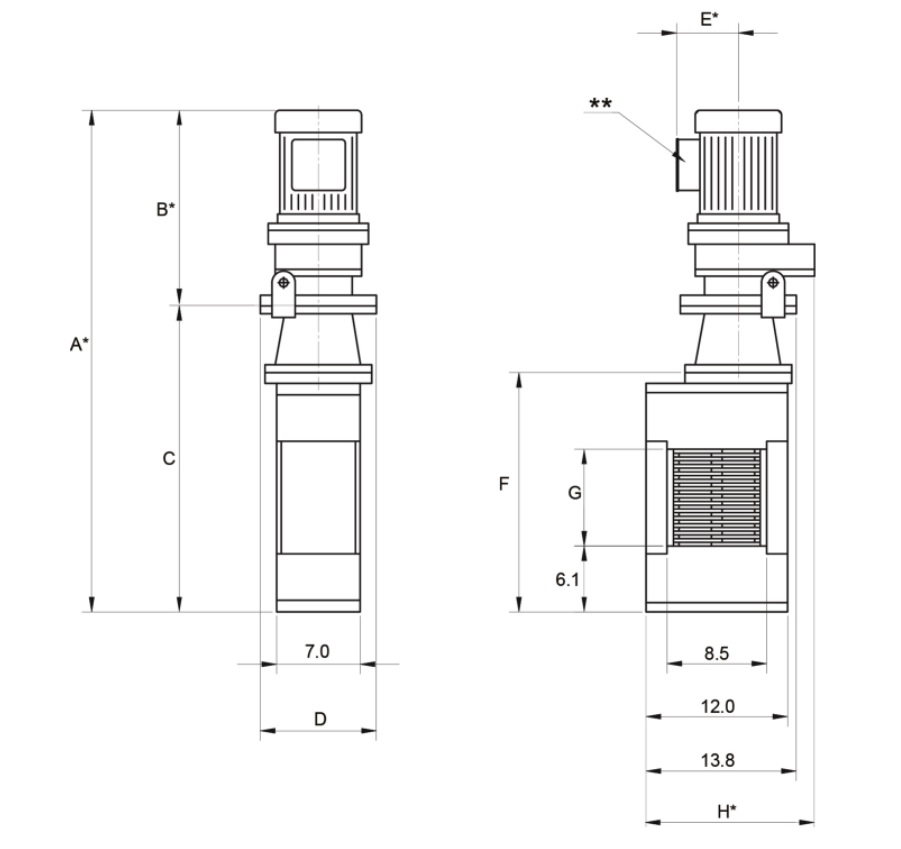

Dimensions (mm)

Model Motor power (kW) A C D E F G
A02CA 1.5 1059 634 260 145 515 175
A03CA 1.5 1173 748 260 145 629 290
A05CA 1.5 1323 898 260 145 779 440
A06CA 1.5 1468 1043 260 145 924 585
A10CA 1.5 1883 1458 260 145 1339 1000
A02CB 2.2 1119 643 260 154 515 175
A03CB 2.2 1233 757 260 154 629 290
A05CB 2.2 1383 907 260 154 779 440
A06CB 2.2 1528 1052 260 154 924 585
A10CB 2.2 1943 1467 260 154 1339 1000
A15CB 2.2 2453 1977 260 154 1849 1510
A02CC 4.0 1244 654 300 179 515 175
A03CC 4.0 1358 769 300 179 629 290
A05CC 4.0 1508 918 300 179 779 440
A06CC 4.0 1653 1063 300 179 924 585
A10CC 4.0 2068 1478 300 179 1339 1000

* When the macerator is supplied without a drive unit, refer to the specifications of the separately supplied drive for
   dimensions "A" & "B", "E", and "H".
** 21 mm conduit entry

Coding

Product range

Channel macerator

A



Throat size

200 mm



0

2



300 mm



0

3



500 mm



0

5



600 mm



0

6



1000 mm



1

0



1500 mm



1

5



Body material

Cast iron



C



Stainless steel*



S



Gun metal



G



Machin type and flange bore

Basic (chanel type)



A



Pipeline 80 N. B. to BS4504 PN16



B



Pipeline 100 N. B. to BS4504 PN16



C



Pipeline 150 N. B. to BS4504 PN16



D



Pipeline 200 N. B. to BS4504 PN16



E



Pipeline 250 N. B. to BS4504 PN16



F



Pipeline 300 N. B. to BS4504 PN16



G



Upflow 80 N. B. to BS4504 PN16



H



Upflow 100 N. B. to BS4504 PN16



J



Upflow 150 N. B. to BS4504 PN16



K



Upflow 200 N. B. to BS4504 PN16



L



Motor size

1,5 kW



A



2,2 kW



B



4,0 kW



C



Cutter

ETOS



W



Number of teeth

5 (8 mm only)



5



7 (5.5 mm only)



7



Thickness

5.5 mm



A



8.0 mm



B



Cutter material

Stainless steel



1

Eхample



A

0

3

C

F

B

W

5

A

1

* Stainless steel and gun metal construction available with high-flow side rails only.
