Series PC Cake pump

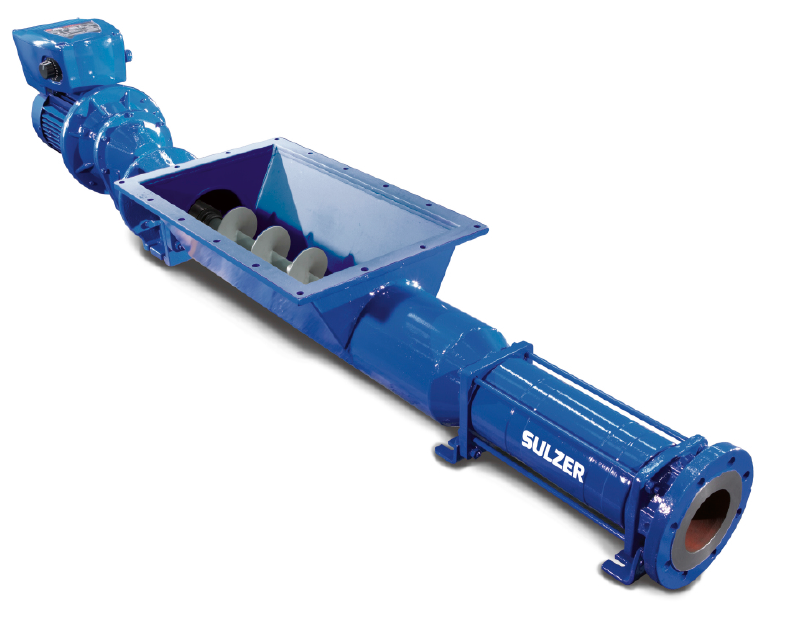

PC Cake Pump

Progressing cavity process pump, designed for pumping of highly viscous materials such as sludges, slurries, thick non-flowing pastes and dewatered sludge cake, in municipal and industrial process applications.

Construction

Materials of construction, available in cast iron or stainless steel, with a choice of rotor and stator materials to suit individual applications e.g. hard chrome plated rotor or natural rubber stator.

Applications

Typical applications for the PC cake pump include:

  • Heavy sludge cake transfer for greater than 30% dry solids concentration.
  • Dewatered and thickened sludge transfer.
  • Sludge blending.
  • Imported and organic waste sludge transfer.
  • Industrial process sludge with high percentage dry solids concentration.

Features

  • An auger screw conveyor for efficient feeding of the pump when handling high percentage dry solid sludge concentrations.
  • Gentle pumping action, minimises shear and crush damage to the pumped product.
  • Supplied with a baseplate to ease installation, or optional without.
  • Fully sealed drive train to maximise life and minimise downtime.
  • Hard faced, single mechanical seal as standard, with packed gland as an option.
  • Designed to accommodate optional hopper or bridge breaker attachments.

Motor / drives

  • Robust drives, specially selected drives and gearboxes for longer life. Options include electric motor drive units supplied as direct-coupled or variable speed drives with mechanical variable speed or frequency inverter.
  • Low running speeds, reduced wear for a longer working pump life which extends the periods between routine maintenance. Important in heavy cake applications.

Performance

Capacity, for flows up to 49 m3/h and differential pressure up to 24 bar, to operate in a range of process temperatures from -10 °C, up to 100 °C

Performance data

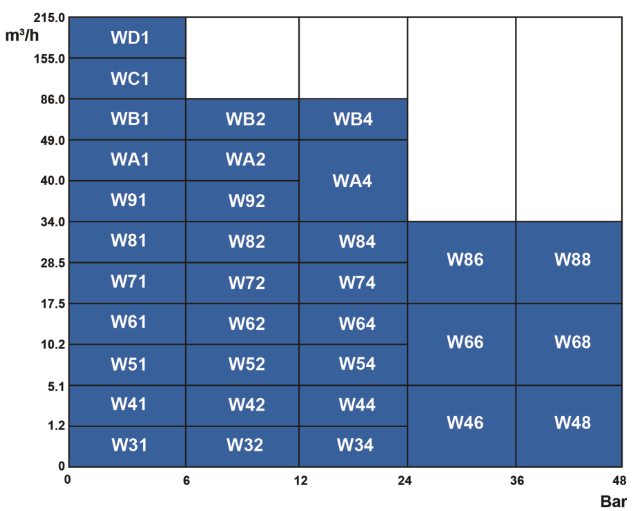

m3/h = capacity. Bar = differential pressure

Materials

Description  Material
Pump cusing Cast iron, BS EN 1561 grade EN-GJL-HB195, or cast stainless steel, BS 3100 grade 316C 16F
Rotor Alloy steel, BS970 grade 708M40T/ 709M40T, with HCP 0.25 mm, or 316 stainless steel BS EN 10088 grade X2CrN-iMo17-12-2
Stator See pump coding table
Drive shaft Stainless steel BS EN 10088 grade X12Cr13/X2CrNi18-9
Coupling rod Steel BS EN 10277, grade 20NiCrMoS2-2 hardened to 650-800Hv, or 316 stainless steel BS EN 10088, grade X2CrNiMo17-12-2
Mechanical seal Silicon carbide faces, viton faces (EPDM by special request), stainless steel 316 springs

Pump coding

Pump design Wide inlet W

Nominal pump capacity at

maximum speed

and zero pressure

1,2 m3/h @350 rpm   3
5,1 m3/h @350 rpm   4
10,2 m3/h @350 rpm   5
17,5 m3/h @350 rpm   6
28,5 m3/h @350 rpm   7
34,0 m3/h @350 rpm   8
40,0 m3/h @350 rpm   9
49,0 m3/h @350 rpm   A
86,0 m3/h @350 rpm   B
155 m3/h @350 rpm   C
215 m3/h @350 rpm   D
Pump stages One      1
Two      2
Four      4
Six      6
Eight      8
Body materials Cast iron        C
Stainless steel        S
Rotating parts Alloy steel with HCP          1
Stainless steel AISI 316          2
Stainless steel AISI 316+HCP          3
Rotor size (temp) Mk 0 (oversize)            Z
Mk 1 (standard)            A
Mk 3 (temperature)            C
Mk 5 (temperature)            E
 Staror material

Natural rubber             A
EPDM             E
High nitrile              J
Nitrile NBR             R
Fluoroelastomer / Viton              V
Hypalon              H
White NBR              W
Polyester based urethane              K
Polyester based urethane              Y

Mechanical seal pump design

Standard auger               J
Large auger               H
Ribbon auger                K
Bridge breaker drive options                D
              E

Packed gland pump design

Standard auger                S
Large auger                L
Ribbon auger                R
Bridge breaker drive options

               B
               C

Prime mover arrangements

and build selection

 Close coupled                    1
                 2
                 3
                 4
 Bareshaft                  5
Example   W B 6 C 4 A R E 3

Pump and wear part weights (kg)

Model Close coupled pump Bareshaft pump Stator Rotor Auger/Conveyor Shaft
Standard auger:
W32 32.0 40.0 1.5 1.4 2.1 0.7
W34 44.0 57.0 3.5 3.0 2.6 1.6
W41 65.0 78.0 2.0 2.8 4.4 0.7
W42 54.0 67.0 3.8 4.7 4.4 1.6
W44 77.0 90.0 7.8 9.3 3.2 2.9
W51 75.0 83.0 4.2 5.4 2.5 1.6
W52 85.0 98.0 8.3 9.3 4.6 2.9
W54 128.0 151.0 16.2 16.8 7.1 4.4
W61 112.0 125.0 7.6 9.3 4.6 2.9
W62 141.0 163.0 14.5 15.7 8.9 4.4
W64 208.0 238.0 28.2 29.2 14.3 4.4
W71 139.0 161.0 10.3 14.7 16.8 4.4
W72 167.0 190.0 19.5 24.5 16.8 4.4
W74 286.0 319.0 38.0 49.3 15.4 8.7
W81 138.0 178.0 13.9 19.9 16.8 4.4
W82 221.0 251.0 26.4 34.4 15.4 8.7
W84 347.0 381.0 51.4 66.4 17.7 9.5
W91 220.0 250.0 21.8 28.5 18.3 8.7
W92 288.0 318.0 41.4 48.3 18.3 8.7
WA1 257.0 287.0 29.4 43.6 18.3 8.7
WA2 369.0 402.0 55.8 71.1 29.1 9.5
WB1 377.0 410.0 55.0 75.2 28.4 9.5
Large auger:

W42 85.0 97.0 3.8 4.7 13.2 1.6
W44 106.0 119.0 7.8 9.3 13.2 2.9
W52 111.0 123.0 8.3 9.3 18.2 2.9
W54 150.0 171.0 16.2 16.8 18.2 4.4
W62 180.0 220.0 14.5 15.7 38.2 4.4
W64 243.0 272.0 28.2 29.2 34.8 4.4
W72 221.0 243.0 19.5 24.5 42.6 4.4
W74 350.0 370.0 38.0 49.3 42.6 8.7
W82 302.0 331.0 26.4 34.4 65.9 8.7
W84 441.0 450.0 51.4 66.4 65.9 9.5
W92 351.0 379.0 41.1 48.3 77.4 8.7
WA2 - 520.0 55.8 71.1 105.3 9.5
WA4 - 665.0 2хW102 160.0 77.4 23.4
WB2 - 670.0 136.0 141.0 77.4 23.4
WB4 - 940.0 2хW122 270.0 77.4 52.0
WC1 - 635.0 90.0 152.0 66.6 23.4
WC4 - - 2х186 500.0 - 44.0
WD1 - 700.0 120.0 183.0 66.6 23.4

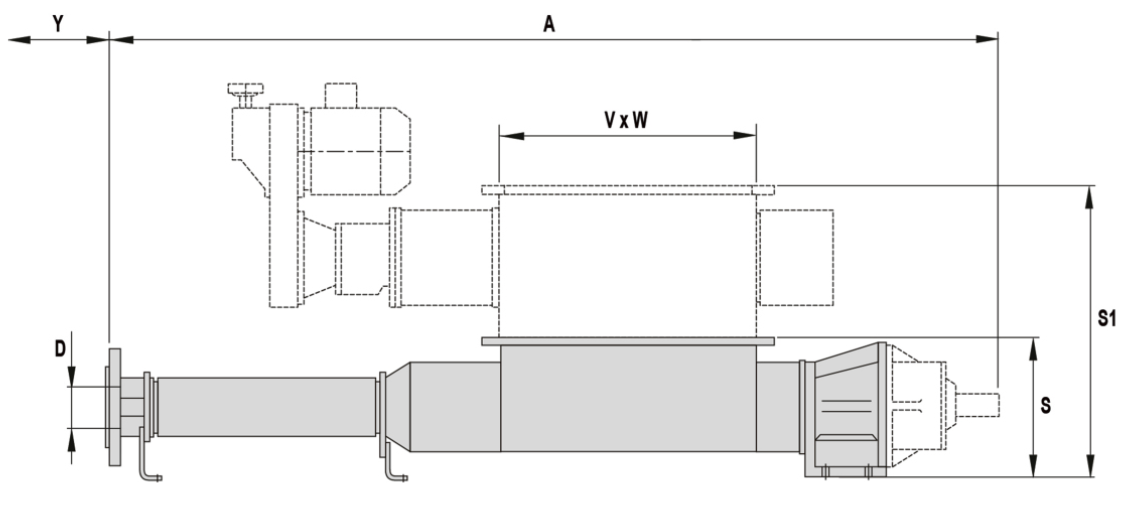

 Motore/ Baseplate dimensions (mm)

Model Standard and Bridge breaker Standard Bridge breaker     Large auger All models
Y A VxW S S1 Y A VxW S D
W32 720 1156 320х170 185 - - - - - *
W34 750 1638 320х170 212 - - - - - 50
W41 835 1324 350х250 232 - - - - - 65
W42 835 1523 350х250 232 412 770 1842 750х250 282 65
W44 890 1987 350х250 245 425 880 2293 750х250 295 80
WC1 1045 1594 500х250 247 - - - - - 80
W52 1050 1859 500х250 260 435 770 2010 750х250 310 80
WC4 1100 2500 500х250 285 460 765 2657 750х250 335 100
WD1 1265 1845 650х360 285 - - - - - 100
W62 1270 2249 650х360 310 515 1030 2484 1000х360 375 100
W64 1330 2964 650х360 320 525 1035 3212 1000х360 395 125
W71 1300 2034 650х360 330 - - - - - 125
W72 1300 2402 650х360 330 525 1025 2675 1000х360 415 125
W74 1410 3395 650х360 405 600 1035 3665 1000х360 465 125
W81 1300 2078 650х360 330 - - - - - 125
W82 1370 2581 650х360 340 550 1040 2865 1000х360 505 125
W84 1440 3590 650х360 405 615 1030 3847 1000х360 505 150
W91 1550 2407 800х450 360 - - - - - 150
W92 1550 2869 800х450 360 575 1045 3053 1000х450 505 150
WA1 1550 2485 800х450 360 - - - - - 150
WA2 1625 3153 800х450 405 655 1042 3410 1000х450 550 150
WB1 1600 2784 800х450 450 - - - - - 200

*1 1/2 BSP outlet provider.

Dimension "Y" is the recommended dismatling space.

En
