GSP-PROJECT LTD LAUNCHES LIFTING DEVICE LD SERIES PRODUCTION.

GSP-Project Ltd “Kamensky factory utility equipment” started launching of universal lifting devices LD series which are used for installation and maintenance of all the types of submerged equipment: mixers, pumps, aerators.

This is the first totally complete lifting device in the world. Simple installation and operation are provided by having only three component parts – support, column, crane. Support devices have three versions of performance: for installation on the wall, on the floor and for concrete baseplate.

Due to mobility of lifting devices life-cycle costs are reduced: lifting crane is easy moved to equipment which requires installation or maintenance. Thereby it is not necessary to use the same number of lifting devices for operation and for service and  pumps, mixers and aerators. You just need to install lifting device support and choose the number of movable cranes you need.

Universal lifting device LD series are used for installation or maintenance of pumps and mixers all of dimension types. The wide range of  lifting units LD series contains models of universal configuration, different carrying capacity and different dimensions of booms. This lets choose  optimal variant in every case.

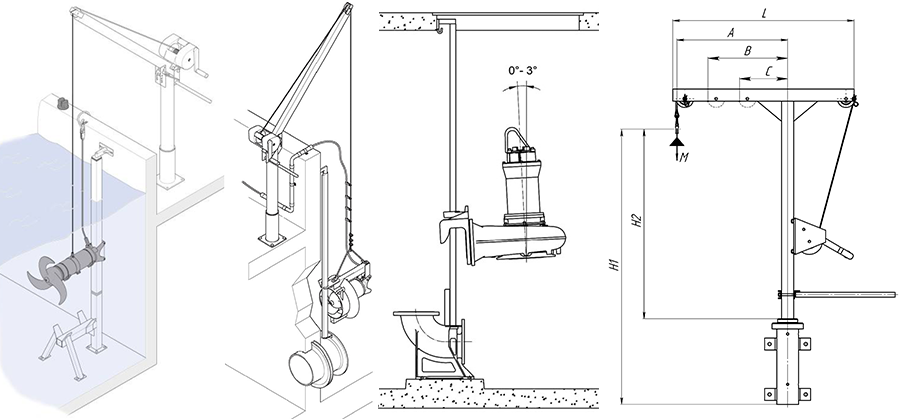

  A,mm B,mm C,mm D, mm H, mm H1,mm H2,mm L,mm SxS, mm M max,kg
LD100 772 692 612  532  1905  1680  1260 1100  60x60  105
LD200 1027 947 867  787  2007  1730  1310 1600  60x60  200
LD300 1222 1122 1022  922  2450  2172  1622  1650  100x100  300
LD400 1072 972 872    -  2450  2172  1622  1600  100x100  400

Lifting device LD series are made only of stainless steel, resistant to corrosion, mechanical wear and abrasion.
