OKI 2000

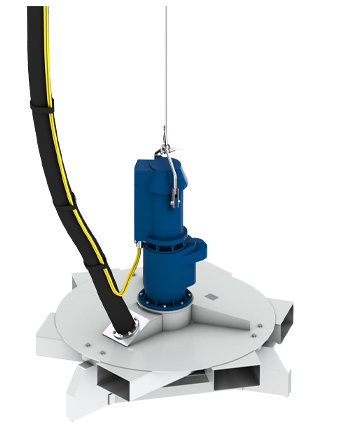

Sulzer Nopon submersible aerator mixer OKI 2000

The Sulzer Nopon submersible aerator mixer OKI 2000 is a heavy duty machine suitable for applications in continuous and/or intermittent aeration of both municipal and industrial wastewater. It can withstand many harsh types of wastewater with no performance degradation and will tackle intermittent process problems better than most alternatives.

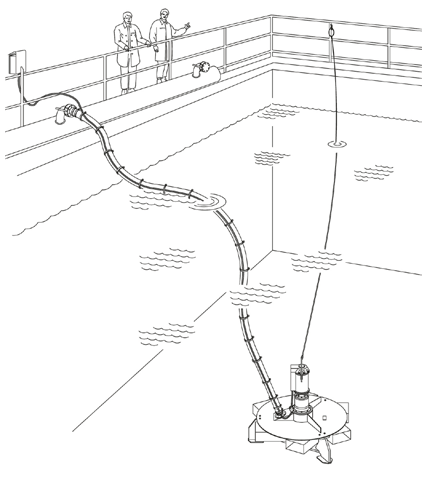

In the OKI compressed air is distributed through a flexible hose down to the machine. Air enters through the stator and is passed on to the rotating rotor. The hollow rotor wings let air out at the tips. As the rotor sucks water from underneath the machine bubbles of air disperse into the water passing the wing tips. The aerated water exits the machine through the stator tubes ensuring even water and air distribution all around the basin. The low speed rotation ensures that flocks are maintained. The turbulence at the tip of the rotor blades enables high oxygen transfer.

Features

  • Adjustable oxygen transfer
  • Superb pumping capacity
  • Good clogging performance
  • Good corrosion resistance
  • Steady alpha factor
  • Lifetime sustainable high aeration efficiency
  • Especially suited for heavy duty and intermittent processes
  • Easy and quick installation without emptying the tank
  • Liftable for easy maintenance
  • No air cooling in deep tanks
  • Usually delivered complete including suitable air hose, lifting cable and electrical cables making installation safe and easy

The Sulzer Nopon submersible aerator mixer OKI 2000 series is a natural choice for industrial and municipal applications. The high quality gear motor guarantees performance and long lasting operational life minimizing the maintenance costs.

Product range

All 4 OKI 2000 models have the same size rotors, stators and frames. Motor power and gear ratio varies. All models are for both aerating and mixing.

  A AV
2000 C 15
2000 C 22
2000 E 30
2000 E  27

Example: OKI 2000E-37AM

2 design of the stator & rotor
(1 for OKI 1000 series and 2 for OKI 2000 series)
E design of gear
37 rated power of the motor is 37 kW
AM aerator + mixer (mixing without air at high speed)

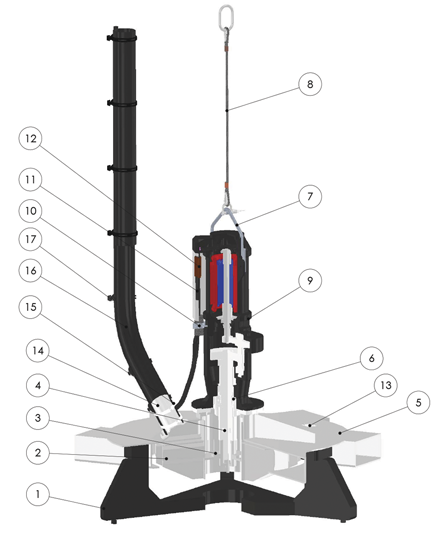

Components and materials

  Description Material
1 Frame Fe37B, epoxy painted
2 Rotor AISI 316
3 Rotor support AISI 316
4 Rotor screw AISI 316
5 Stator and stator ducts AISI 316
6 Heavy duty shaft seal AISI 316
7 Lifting bail AISI 316
8 Lifting cable AISI 316
9 Drive unit (geared motor) Cast iron, epoxy painted
10 Cable support AISI 316
11 Cables Neoprene rubber sheath
12 Airlock Resin
13 Nameplate AISI 316
14 Hose flange (with seal) AISI 316
15 Hose clamps AISI 316
16 Process air hose EPDM (reinforced)
17 Hose straps EPDM

Technical specification



OKI 2000C-15 AM

OKI 2000C-22 AM

  OKI 2000E-30 AM

OKI 2000E-37 AM

Protection type

IP68

IP68

 IP68

IP68

Standard voltage(1

400 V / 50 Hz

400 V / 50 Hz

 400 V / 50 Hz

400 V / 50 Hz

Temperature control

Thermal

switch 130°C

Thermal

switch 130°C

Thermal

switch 130°C

Thermal

switch 130°C

Main dimension [mm]

( lenght x depth x height)(2

2045x2252x2075



2045x2252x2075



 2045x2252x2195



2045x2252x2195



Unit weight [kg](2(4

1930

1960

2070

2070

Installation depth [m]

4-12

4-12

 4-12

4-12

SOTR [kg O2/ h](2(3

170

220

 238

270

Air flow rate [m3/ min, 20°C](2(5

0-36

0-47,2

 0-53

0-60

1) Other options for 50 Hz: 230 V, 380 V, 415 V, 500 V, 660 V and 690 V. Also available for 60 Hz: 230 V, 440 V, 460 V and 575 V.

2) Depends on the model

3) At 8 meters

4) Without accessories

5) Depends on installation depth
