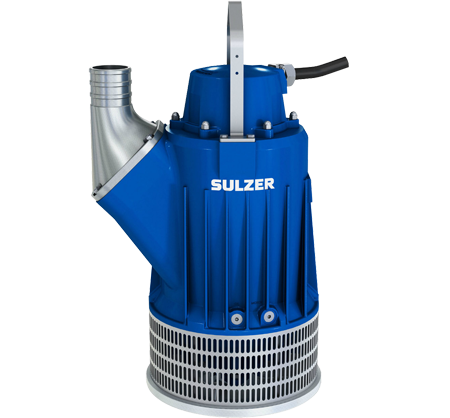

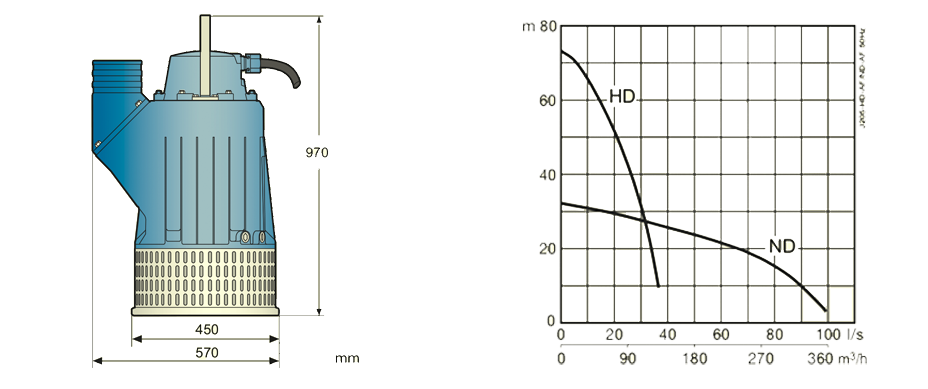

Sulzer submersible dranaige pump J 205

The low weight and compact design of the submersible drainage pump J 205 ensure convenient transport, handling, and installation. The pump is ideal for pumping water and dirty water mixed with light abrasives. 50 Hz: head max 72 meters, flow max 102 l/s. 60 Hz: head max 85.5 meters (280 feet), flow max 106 l/s (1683 gpm).

Specification

Electric submersible pump.
Maximum submergence: 20 m. Protection class IP 68.
Max temperature of pumped medium at max power input and continuous duty 40 ºC.
Max medium density 1100 kg/m3. pH of the pumped medium 5-8. Strainer hole: 8 x 34 mm.
Max number of starts 30/hour

Electric motor

3-phase squirrel-cage induction motor, 50 Hz:

Service factor 1.1. Class F insulation.
Motor rating P2: 21.0 kW.
Speed: 2910 rpm.

Starting method and motor protection

D.O.L. start with built-in contactor (1000 V with terminal block).
D.O.L. start with built-in SoftDrive (400-460 V).
Star-Delta start with built-in terminal block.
When used with VFD, pump must be equipped with terminal block instead of contactor.

Power cable

20 m type H07RN8-F (standard cable):
4 x 4 sq.mm. (690 V DOL-start)
4 x 10 sq.mm.(400-550 V DOL-start)
4 x 16 sq.mm.(230 V DOL-start)
10 x 2.5 sq.mm. (690 V star-delta start)
2-4 x 6 sq.mm. + 4 x 1.5 sq.mm. (400-550 V star-delta start)
2-4 x 10 sq.mm. + 4 x 1.5 sq.mm. (230 V star-delta start)

20 m type NSSHÖU.../3E (heavy duty cable):
3x6+3x6/3E+3x1.5 (3 control cables incl.) (690-1000 V DOL-start)
3x10+3x10/3E+3x2.5 (3 control cables incl.) (400-550 V DOL-start)

Motor protection

Built-in thermal switches in the stator windings (140ºC, ±5), connected to built-in contactor, SoftDrive or to separate control box.
DI leakage sensor (not in combination with built-in contactor or SoftDrive).

Shaft seal

Double mechanical seal in oil bath, mounted in seal cartridge for easy service.
Primary seal: Silicon carbide on silicon carbide.
Secondary seal: Silicon carbide on antimony treated carbon.

Bearings

Upper bearing: Single-row deep groove ball bearing.
Lower bearing: Double angular contact ball bearing.

Discharge connections

4" (standard HD), 6" (standard ND), 8” hose connections.
4", 6", 8" G/B.S.P. threaded connections.

Weight

155 kg (without cable)

Options and accessories

Zinc anodes. Surface protection coating.
Wear plate in polyurethane.  Electronic motor supervision.
Series connection. Starter and control units.
Automatic level control unit. Floatation system.
Repair kit. Discharge connection accessories and hose.
