XJC 110

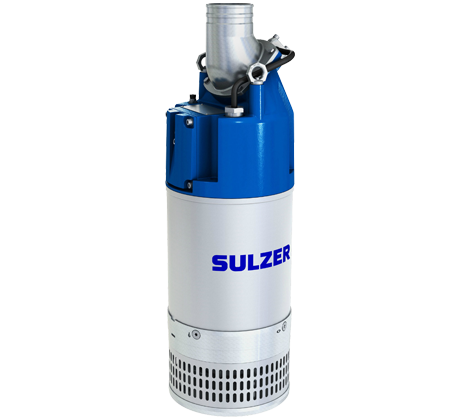

Sulzer submersible dranaige center-line pump XJC 110

The slim design of the submersible drainage center-line pump XJC 110 makes it perfect for applications with limited installation space. The pump is ideal for pumping water and dirty water mixed with light abrasives. Pumps with built in AquaTronic unit will always have correct direction of impeller rotation, ensuring peak performance and reduced wear. 50 Hz: head max 52 meters, flow max 54 l/s. 60 Hz: head max 63 meters (207 feet), flow max 55 l/s (873 gpm).

Specification

Electric submersible pump.
Maximum submergence: 20 m. Protection class IP 68.
Max temperature of pumped medium at max power input and continuous duty 40 ºC.
Max medium density 1100 kg/m3. pH of the pumped medium 5-8.
Strainer hole: 7.5 x 22 mm.
Max number of starts 30/hour.

Electric motor

3-phase squirrel-cage induction motor, 50 Hz:

Service factor 1.1. Class F insulation.
Motor rating P2: 11.8 kW. 2 pol.
Speed: 2920 rpm.ŋ: 89.8 (50 %), 90.9 (75 %), 90.8 (100 % load)

Voltage, V 230 400 500-550 690 1000
Nominal current, A 37.4 21.5 17.2 12.5 8.6

Starting method and motor protection

XJC 110 AT: Soft start (400 V) is built in with the AquaTronic unit, where three thyristors reduces start current to three times the nomi-nal current. Here two relays ensure correct motor rotation. The AquaTronic unit monitors motor temperature, by use of NTC thermistors built into stator windings, and stops the motor at high temperature. It will also stop the motor at high amperage or if a phase is missing.

XJC 110: Direct on line start with built in contactor. Pumps to be used with VFD or 1000 V must have terminal block instead of con-tactor. Thermal switches (140 °C, ±5) built into the stator windings are connected to the contactor and stop the pump at high tempera-ture.

Power cable

20 m type H07RN8-F (standard cable):
4 x 6 sq.mm. (230 V)4 x 4 sq.mm. (400 V, 500-550 V)
4 x 2.5 sq.mm. (690 V)

20 m type NSSHÖU.../3E (heavy duty cable):
3x6+3x6/3E+3x1.5 (3 control cables included) (230-400 V terminal block)
3x2.5+3x2.5/3E+3x1.5 (3 control cables included) (500-1000 V terminal block)
3x6+3x6/3E+3x1.5 (230-400 V)
3x2.5+3x2.5/3E (500-550 V, 690 V)

Shaft seal

Double mechanical seal in oil bath.
Primary seal: Silicon carbide on silicon carbide.
Secondary seal: Silicon carbide on carbon.

Bearings

Upper bearing: Single-row deep groove ball bearing.
Lower bearing: Double angular contact ball bearing.

Discharge connections

3" (standard HD), 4" (standard ND), 6" hose connections.
3", 4", 6" G/B.S.P. threaded connections.

Weight

80 kg (without cable)

Options and accessories

AquaPlug. AquaTronic control panel.
Level sensor. Service data kit.
Zinc anodes. Surface protection coating.
Series connection.
Discharge connection accessories and hose.

Pump control

    XJC 110 AT
Features XJC 110 AT AT + Level Sensor AT + AquaPlug / AquaTronic Control Panel AT + AquaPlug / AquaTronic Control Panel + Level Sensor Service Data Kit Read out
Run mode X X X X X
Integrated start equipment X X X X X
Automatic direction of rotation   X X X X
Motor protection high temp X X X X X X
Motor protection high amp   X X X X X
Protection against missing phase   X X X X X
Level control     X   X
Dry run protection     X   X
Automatic restarting     X   X
Stop mode       X X
E-mode (Automatic stop/run)     X   X
Indication of water in oil       X X X
Indication of low motor insulation       X X X
Indication of high or low voltage       XX XX X
Indication of high temperature       XX XX X
Indication of high amp       XX XX X
Indication of phase unbalance       XX XX X
USB cable connection   X X X X X
Crash log (10 latest)           X
Documentation (spare part list, workshop manual)           X

XX = Fault indication when pump is automatically stopped to protect the motor.

Materials

Description Material EN ASTM
Castings Aluminium EN 1706:AC-43100  ASTM AlSi10mg
Casing / Jacket Stainless steel 10088:X5CrNi18-10 (1.4301)  AISI 304
Rotor shaft Stainless steel 10088:X20Cr13 (1.4021)  AISI 420
Impeller / Wear ring White cast iron EN-GJN-HV600(XCr23)  ASTM A 532: Alloy III A
Fasteners Stainless steel 10088:X5CrNiMo 17122 (1.4401) AISI 316
Wear parts / O-rings Nitrile rubber
Coating 2 component epoxy paint 120 μm
