Series VUPX

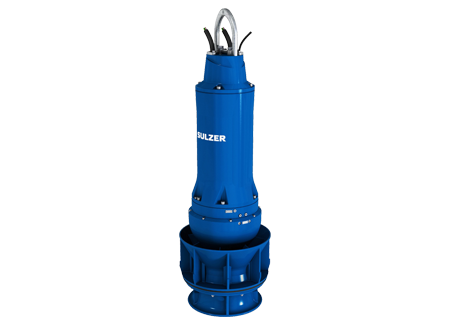

Sulzer submersible propeller pumps VUPX series

Sulzer submersible propeller pumps of the VUPX series are used where larger water volumes must be pumped up to relatively low heads (up to approx. 10 m). They are ideal for storm water pumping stations, for polder dewatering, for storm water protection, for irrigation and dewatering, for cooling and process water and for a multitude of other applications.

Construction

  • The water-tight fully flood-proof motor and the pump section form a compact and robust unit.
  • Water pressure sealed connection chamber, with two stage cable entry, protected against excessive cable tension and bending.
  • Bimetallic thermal sensors in the stator which open at 140 °C.
  • Rotor and rotor shaft dynamically balanced, upper and lower bearings lubricated-for-life, maintenance-free.
  • Optimum motor cooling by directing the medium being pumped over the motor.
  • Double shaft sealing.
  • Lower sealing by means of a silicon carbide mechanical seal, independent of the direction of rotation.
  • Upper mechanical seal in silicon carbide in case of motor size ME4 and in carbon/chrome steel in case of motor size ME5 and ME6, independant of direction of rotation.
  • Separation chamber for ME4 and ME5 and oil chamber in case of ME6 with seal monitor sensor to indicate water leakage through mechanical seal.
  • Hydraulic parts with axial propeller with 3 or 4 adjustable pro- peller blades or 3-blade propeller in the new Skew design and inlet diffuser on discharge side.
  • These pumps are available both in standard and explosion-proof versions in accordance with international standards e.g. Ex d IIB T4/ATEX II 2Gk.

Motor

Water pressure sealed high efficiency motors, (3-phase, squirrel cage induction motors) with efficiency class II, from 15 to 250 kW and, depending on hydraulic requirements as 4- to 12-pole versions. Voltage: 400 V3~, 50 Hz (other voltages on request).

Insulation class: H (motor winding protected by temperature sensor 140 °C). Protection type: IP68.

Hydraulics

You have the choice of the following hydraulics for the nominal pipe diameter 600 to 1400 mm. For power demand beyond available range ME4 to ME6 please refer to technical data sheet VUP M8 and M9.
Start-up: direct on line (DOL), soft starter or star-delta.

Voltage: 400 V3~, 50 Hz (other voltages on request). Insulation class: H (motor winding protected by temperature sensor 140 °C). Protection type:IP68. Start-up: direct on line (DOL), soft starter or star-delta.

Pump selection

For pump selection please use our ABSEL programme Duty point -> Selection of hydraulics -> Choice of motor Hint More detailed information like dimension drawings, electrical data, etc. is also available from the ABSEL CD.

Standard and options

Description Standard Option
Max. ambient temperature 40'C
Max. submergence depth 20m
Mains voltage 380...420 V/50 Hz 230 V (not all versions), 690 V/50 Hz
Voltage tolerance ± 10 % on 400 V
Insulation class H (140) H (160)
Start-up DOL, star-delta or soft starter, VFD
Approval Ex/ATEX Ex/ATEX
Cables S1BN8-F EMC shielded cables
Cable length 10 m 15 m, 20 m, other length on request
Mechanical seal (medium side) SiC-SiC (NBR) SiC-SiC (Viton execution)
Mechanical seal (motor side) SiC-SiC
O-rings NBR Viton
Preparation for lifting hoist Lifting hoop Lifting hoop in stainless steel
Protective coating Two component coating epoxy resin Special coatings on request
Cathodic protection   Zinc anodes on request
Installation Wet-well in steel pipe or concrete sump
Motor cooling By surrounding medium
Moisture sensor motor housing   DI (sensor for moisture detection)*
Moisture sensor separation chamber DI (sensor for moisture detection)

* standard for PE6 motor range

Motor protection

X = Standard; O = Option; - = not possible

от МЕ4 до МЕ6



Standard

Ех

FM

Winding

Bi-metallic switch

Thermistor (PTC)

PT 100

Х

О

О

Х

О

-

Х

О

-

Seal protection

Separation chamber

Motor housing O (X only PE6)

Connection box

Х

О (X only PE6)

О (X only PE6)

О

Х

О (Х only МЕ6)

Х

О (Х only МЕ6)

О (Х only МЕ6)



Temperature

bearing

upper/lower

Bi-metallic switch

Thermistor (PTC)

PT 100

Vibration sensor

О (X only PE6)

О

О

О (Х тonly МЕ6)

О

О

О (Х only МЕ6)



О

О

Motor Standard Option Hydraulics Standard Option
Connection chamber EN-GJL-250   Diffuser EN-GJL-250 1.4470
Cooling/oil chamber EN-GJL-250   Inlet diffuser EN-GJL-250 1.4470
Motor housing EN-GJL-250   Wear ring 1.4408
Motor shaft 1_4021 1.4462 Propeller hub EN-GJS-400-18 1.4581
Fasteners (medium contacted) 1.4401   Propeller blades 1.4340 1_4581
Lifting hoop (PE4 & 5) EN-GJS-400-18 1.4470 Propeller cap PUR 1.4581
Lifting hoop (PE6)   1.4462 Propeller (VUPX 0403/0503) 2.0975.01 1.4581
Coupling ring 1_0446 1.4408 Fasteners (med. contacted) 1.4401
