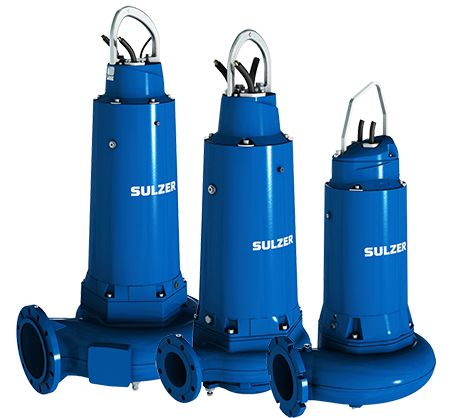

Sulzer submersible sewage pump XFP CB2
Submersible sewage pump type ABS XFP CB Plus is designed for municipal and industrial wastewater equipped with Premium Efficiency IE3-level motor. Suitable for clean water and wastewater, sewage with sludge and highrag content, solids and fibrous mate-rial.
Construction
- Premium Efficiency IE3 motors in accordance with NEMA and IEC 60034-30. Testing in accordance with IEC60034-2-1.
- Premium Efficiency motors designed for VFD operation in accordance with IEC/TS 60034-25 A (Upeak< 1300 V).
- The water-tight fully flood-proof motor and the pump section form a compact and robust unit, easy to clean and easy to service.
- Water pressure sealed connection chamber, with two stage cable entry, protected against excessive cable tension and bending.
- Bimetallic thermal sensors in the stator which open at 140 °C (284 °F).
- Rotor and shaft dynamically balanced, upper and lower bearings lubricated-for-life, maintenance-free.
- Insulated upper bearing for VFD operation standard for PE6 and optional for PE5.
- Triple shaft sealing.
- Upper and lower sealing by means of a silicon carbide/silicon carbide mechanical seal, independent of the direction of rotation.
- Inspection chamber with sensor for moisture protection to indicate water leakage through mechanical seal.
- Option: Blockage- and maintenance-free internal closed looped cooling system. Cooling medium: Glycol - water mixture (standard for PE6 range).
- Hydraulic parts with 2-channel Contrablock Plus impeller.
- These pumps are available as standard (PE4 - PE6) and explosion-proof construction in accordance with international standards such as NEC 500 Class I, Division 1, Groups C and hazardous (classifield) locations.
Motor
Water pressure sealed Premium Efficiency motors, (3-phase, squirrel cage induction motors), from 20 to 280 kW (27 to 375 hp) and depending on hydraulic requirements as 4- to 8-pole versions.
Voltage: 460 V, 3~, 60 Hz (other voltages on request).
Insulation components: Class H (winding protection by 140 °C (284 °F) sensor)
Temperature rise: According to NEMA class A up to 125 kW and class B above.
Protection type: IP68
Start-up: DOL (direct on line), VFD or soft starter.
Hydraulics:
You have the choice of the following hydraulics in the range of DN 100 to DN 400 (4 to 16 in) discharge:
| XFP 105J / 4 inch |
CB2 |
XFP 305J / 12 inch |
CB2 |
| XFP 155J / 6 inch |
CB2 |
XFP 305M / 12 inch |
CB2 |
| XFP 205J / 8 inch |
CB2 |
XFP 306M / 12 inch |
CB2 |
| XFP 205M / 8 inch |
CB2 |
XFP 405M / 16 inch |
CB2 |
| XFP 206J / 8 inch |
CB2 |
|
|
| XFP 255J / 10 inch |
CB2 |
|
|
Performance field
Standard and Options
|
Description
|
Standard
|
Option
|
| Max. ambient temperature |
40 °C (104 °F) |
60 °C (140 °F) |
| Max. submergence depth |
20 m (66 ft) |
- |
| Mains voltage |
460 V/60 Hz |
230 V, 380 V, 575 V, 600 V / 60 Hz |
| Voltage tolerance |
± 10 % at 460 V |
|
| Insulation components |
Class H [140 °C/284 °F] |
Class H [160 °C/320 °F] (not for Ex) |
| Start-up |
DOL (direct on line), VFD or soft starter |
- |
| Approvals |
Non-FM |
NEC Class I, Division 1, Groups C and D* |
| Mechanical seal (at medium side) |
SiC-SiC (NBR) |
SiC-SiC (Viton execution) |
| Mechanical seal (at motor side) |
SiC-SiC |
- |
| O-rings |
NBR |
Viton |
| Cables |
G-GC, H07RN8-F |
EMC shielded cables |
| Cable length (m) |
10 [33] |
15 [49], 20 [66], 30 [98], 40 [131], 50 [164] |
| Protective coating |
Two component epoxy resin coating |
Special coatings on request |
| Preparation for lifting hoist |
Lifting hoop |
Lifting hoop in stainless steel* |
| Cathodic protection |
- |
Zinc anodes on request |
| Installation |
Wet-well |
Dry-well vertical/horizontal |
| Motor cooling |
Cooling by surrounding medium |
Closed loop cooling system** |
| Moisture sensor motor housing |
PE6 |
PE3 - PE5 |
| Moisture sensor inspection chamber |
PE3 - PE6 |
- |
| Vibration sensor |
- |
PE4 - PE6 |
Motor protection
|
PE3 to PE6
|
PE3 to PE6
|
non-FM
|
FM
|
|
Winging
|
Bi-metallic switch
|
⚫ |
⚫* |
|
Winging
|
Thermistor (PTC) |
◯ |
◯* |
|
Winging
|
PT 100
|
◯**
|
◯**
|
|
Moisture sensor
|
Inspection chamber
|
⚫**
|
◯ (⚫ for PE3)
|
|
Moisture sensor
|
Motor housing
|
◯ (⚫ for PE3 and PE6)
|
◯** (⚫ for PE6)
|
| Moisture sensor |
Connection chamber |
◯** (⚫ for PE6) |
◯** (⚫ for PE6) |
| Temperature bearing upper/lower |
Bi-metallic switch |
◯** (⚫ for PE6) |
◯** (⚫ for PE6) |
| Temperature bearing upper/lower |
Thermistor (PTC) |
◯** |
◯** |
| Temperature bearing upper/lower |
PT 100 |
◯** |
◯** |
| Vibration sensor |
0-20 mm/s |
◯** |
◯** |
⚫=standart, ◯=option, * PTC to be used when operated via VFD. ** Not available for PE3
Materials
| Motor |
Standard |
Option |
| Connection chamber |
EN-GJL-250 |
- |
| Cooling chamber |
EN-GJL-250 |
- |
| Cooling jacket |
1.0036* |
- |
| Motor housing |
EN-GJL-250 |
- |
| Motor shaft |
1.4021 |
1.4462 |
| Fasteners (medium contacted) |
1.4401 |
- |
| Lifting hoop (PE3) |
1.4401 |
- |
| Lifting hoop (PE4 & PE5) |
EN-GLS-400-18 |
1.4470 |
| Lifting hoop (PE6) |
1.0553 |
1.4462 |
| Hydraulics |
|
|
| Volute |
EN-GJL-250 |
1.4470 |
| Impeller |
EN-GJL-250 |
1.4470** |
| Bottom plate |
EN-GJL-250 |
1.4470** |
| Connection system (wet) |
|
|
| Pedestal |
EN-GJL-250 |
Non sparking |
| Fastening elements |
Stainless steel |
- |
| Protective coating |
Epoxy resin based |
- |
| Guide rail |
Galvanized steel |
Stainless steel |
| Pipe retainer |
EN-GJS-400-18 |
1.4470 |
| Connection system (dry) |
|
|
| Support frame |
1.0036 |
Galvanized steel |
* PE3 = EN-GJL-250 flame hardenend
Material comparsion
| Europe |
USA |
| EN 1561; EN-GJL-250 |
ASTM A48; Class 35 B |
| EN 1563; EN-GJS-400-18 |
ASTM A536; 60-40-18 |
| EN 10025; 1.0036; S235JRG1 |
ASTM / AISI A283 (С) |
| EN 10025; 1.0060; E335 |
ASTM / AISI A572 (65) |
| 1.4021; 1.4401 |
ASTM / AISI 420; 316 |
| 1.4470 |
ASTM A 890 4A (CD 3MN) |
