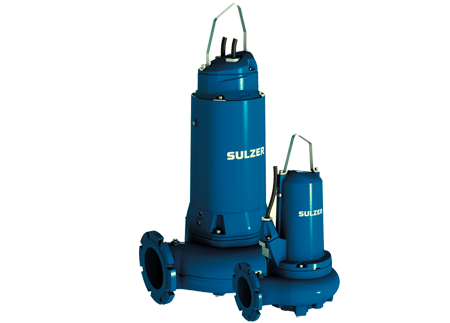

Sulzer submersible sewage pump XFP 100E and 150G

Robust, reliable, submersible chopper pumps, with Premium Efficiency motors from 10.0 to 14.0 hp. For the pumping of heavily contaminated commercial, industrial, municipal and agricultural wastewater, sewage and sludge, in wet well installations.

Features

• The water-pressure-tight, encapsulated, flood-proof motor and the pump section form a compact, robust, modular construction.
• NEMA Class A temperature rise.
• Premium Efficiency motors in accordance with IEC 60034-30 level IE3 with testing in accordance with IEC60034-2-1.
• Continuously rated motor.
• Double mechanical seals. SiC-SiC at the medium side; SiC-C (100E) and SiC-SiC (150G) at the motor. XFP 150G has an additional inner lipseal at the motor side. All seals are independent of rotation direction and resistant to temperature shock.
• Anti-wicking cable plug solution (100E), or water-pressure-sealed connection chamber (150G).
• Hardened chopper impeller and cutter plate efficiently reduces large solids or fibrous materials to ensure optimum blockage-free pumping.
• Lubricated-for-life bearings with a calculated lifetime of minimum 50 000 hrs. (100E), and 100 000 hrs. (150G).
• Stainless steel shaft. Designed with high safety factor to prevent fatigue fracture.
• Temperature monitoring using bi-metallic thermal sensors in the stator windings that open at 140 °C (284 °F).
• Seal monitoring by a moisture probe (DI) in the motor and seal chambers (100E), or motor and oil chambers (150G), which signals an inspection alert if there is leakage at the shaft seals.
• Smooth outer design to reduce rag build-up.
• Stainless steel lifting hoop.
• 4" and, 6" radial slot ANSI flange discharge.
• Maximum allowable temperature of the medium for continuous operation is 104 °F.
• Maximum submergence depth of 65 ft.
• Explosion-proof as standard, in accordance with international standards FM / CSA

* See Technical Data Table.

Motor

Premium Ee: ± 10%
Protection type: IP 68
Stator insulation: Class H
Start-up: DOL (direct on line).
Cooling: 100E self-cooling, 150G by the medium.
Service factor: 1.3
Motors with other operating voltages and frequencies are also available.

Identification Code

e.g. XFP 100E CP.3 PE90/4-E-50
Hydraulics:
XFP ........ Product range
10............Discharge outlet DN [cm]
0 . ...........Hydraulic type
E .............Volute opening [dia. ins]
CP............Chopper impeller
3 .............Impeller size
Motor:
PE .......... Premium Efficiency
90 .......... Motor power P2 x 10 hp
4 .............Number of poles
E .............Volute opening [dia. ins]
50 ...........Frequency

Materials

Technical Data

* P₁=power at mains. P₂=power at motor shaft. **Includes 49 ft cable. Data alternative voltages available on request.

Standard and options

* Selected motors only. Contact Sulzer for details

Monitoring

Temperature and leakage relays are required. See accessories table. * Must be selected when pump is operated via VFD.

Accessories

*Guide rail not included
