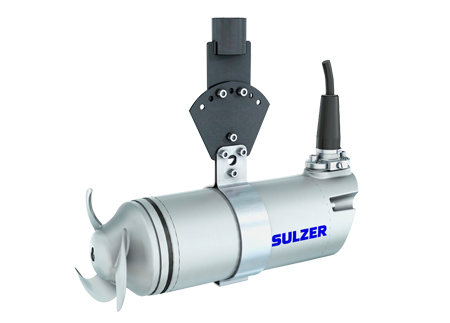

Sulzer submersible mixer XRW 210
Compact submersible mixer, designed to achieve an optimum flow pattern in a wide range of mixing and stirring applications, in large tanks and open waters.
Construction
The submersible mixer is designed as a compact, water-pressure-tight unit, with propeller and mounting bracket which allows for vertical and horizontal adjustment. A mounting kit for attachment to a square guide rail is also available. A flow ring is fitted on selected models. The mixer is available in cast iron (EC) and stainless steel (CR) versions.
Motor
Premium Efficiency IE3, three-phase, squirrel-cage motor; 400 V*; 50 Hz; 4-pole. Protection type IP 68, with stator insulation Class H. Start-up: direct on line (DOL) Max. submergence 20 m. * other voltages available
Propeller
Technically optimized, axially operating 2- or 3-blade propeller, designed to achieve high thrust and therefore a high flow capacity in an axial direction. The propeller is self-cleaning and so ensures vibration-free operation.
Solids deflection ring
The patented solids deflection ring protects the mechanical seal from damage by ingress of solid or fibrous matter.
Bearings
All bearings are lubricated-for-life and maintenance-free, with a calculated lifetime of more than 100,000 h.
Shaft sealing
Sic-Sic mechanical seal at medium side.
Optional lengths (m): 15, 20, 30, 40, 50.
Options
Explosion-proof version, additional seal (Sic-C) at motor side, flow ring, seals in viton, EMC cable, PTC thermistor in stator, vertical angle adjustment, vortex shield, lifting hoop, guide rail bracket, vibration damper.
NBR O-rings and lip seals.
Seal monitoring
DI-system with sensors in the oil**, motor, and cable connection chambers.
Temperature monitoring
Thermal sensors in the stator which open at 140 °C.
Cable
10 m sewage-resistant CSM material, type S1BN8-F.
Motor data
| Motor |
PA 08/4 |
PA 15/4 |
| Rated power (kW) |
0.8 |
1.5 |
| Rated current (A) at 400 V |
1.8 |
3.7 |
| Speed (min-1) |
1424 |
1434 |
| Motor efficiency (%) |
82.5 |
85.3 |
| Power factor |
0.75 |
0.70 |
Mixer performance
| Hydraulic № |
Mixer power PP in kW |
Motor kW |
| 2121 |
0.7 |
0,8 |
| 2131 |
0,9 |
1.5 |
| 2132 |
1,2 |
1.5 |
| 2133 |
1,4 |
1.5 |
| 2141* |
0,3 |
0,8 |
| 2151* |
0,5 |
1.5 |
| 2152* |
0,8 |
1.5 |
|
2153*
|
0,9 |
1.5 |
*with flow ring
Materials
| Part |
EC |
CR |
| Motor housing |
EN-GJL-250 painted |
1.4404 (AISI 316L) |
| Motor shaft |
1.4021 (AISI 420) |
1.4401 (AISI 316) |
| Propeller |
1.4460 (AISI 329) |
1.4460 (AISI 329) |
| Fasteners |
1.4401 (AISI 316) |
1.4401 (AISI 316) |
| Lifting band |
1.4404 (AISI 316L) |
1.4404 (AISI 316L) |
