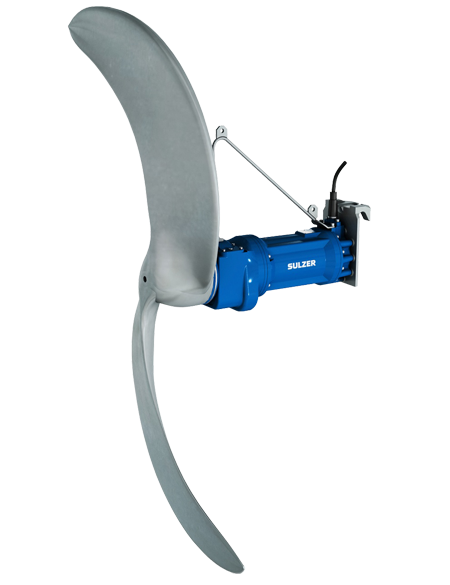

Sulzer flow booster XSB 1600 – 2000
The compact Sulzer flow boosters have been designed for a wide range of applications. The units are suitable to achieve flow pattern in large tanks and open waters for mixing and stirring applications.
Construction
The Sulzer flow booster XSB is designed as a compact, water pressure-tight unit including propeller and integrally lockable coupling system. The flow boosters are available in the material version: Cast iron (EC)
Motor
Premium Efficiency IE3, squirrel cage, 3-phase, 4-pole, 50 Hz, insulation class F (155 °C), max. submergence 20 m.
Propeller
Technically optimized, axially operating 2-blade propellers with very good self-cleaning effect for vibration-free operation. The propellers are designed to achieve high thrusts and therefore a high flow capacity in axial direction.
Solids deflection ring
The patented solids deflection ring protects the mechanical seal from damage by ingress of solids or fibrous matter.
Bearings
All bearings are lubricated-for-life and maintenance-free, with a calculated life time of more than 100,000 h.
Motor data
| Motor |
РА12/4 |
РА 18/4 |
РА 25/4 |
РА 35/4 |
РА 55/4 |
| Rated power (kW) |
1.2 |
1.8 |
2.5 |
3.5 |
5.5 |
| Rated current at 400 V (A) |
2.37 |
3.59 |
4.63 |
7.63 |
12.5 |
| Motor efficiency (%) |
87.8 |
88.3 |
89.6 |
88.4 |
89.9 |
| Propeller speed (min-1) |
39/42/46 |
42 |
53/60 |
60/68 |
68 |
Gearbox
Robust fatigue strength gearbox of high efficiency and very long operating life, oil lubricated.
Shaft sealing
Motor side dual radial seal, medium side silicon carbide mechanical seal independent of direction of rotation. O-Rings / lip seals: NBR.
Seal monitoring
DI-system with a sensor in the junction box and in the oil chamber, motor and gearbox.
Temperature monitoring
TCS-Thermo-Control-System with bimetallic contacts as thermal sensors in every phase of the stator give a timely warning or switch off the motor automatically before the permissible temperature limit e.g. due to overloading, high temperatured medium, or other problem sources, has been exceeded.
Cable
10 m sewage resistant S1BN8-F.
Options
Explosion-proof version, seals in viton, cable protection sleeve, PTC or PT 100 in the stator.
Weight
XSB 1621, 1622, 1623, 1624 = 260 kg.
XSB 1821, 1822, 1823, 1824, 1825 = 265 kg.
XSB 2021, 2022, 2023, 2024, 2025 = 270 kg.
Concrete pedestal and coupling device = 490 kg.
Flow booster performance table
| Hydraulic No. |
Propeller dia. in mm |
Mixer power PP in kW |
Motor kW |
| XSB 1621 |
1600 |
0,8 |
1,2 |
| XSB 1622 |
1600 |
1,4 |
1,8 |
| XSB 1623 |
1600 |
1,9 |
2,5 |
| XSB 1624 |
1600 |
2,6 |
3,5 |
| XSB 1821 |
1800 |
0,7 |
1,2 |
| XSB 1822 |
1800 |
1,2 |
1,8 |
| XSB 1823 |
1800 |
1,9 |
2,5 |
| XSB 1824 |
1800 |
2,6 |
3,5 |
| XSB 1825 |
1800 |
3,5 |
5,5 |
| XSB 2021 |
2000 |
1,1 |
1,2 |
| XSB 2022 |
2000 |
1,4 |
1,8 |
| XSB 2023 |
2000 |
2,3 |
2,5 |
| XSB 2024 |
2000 |
3,1 |
3,5 |
| XSB 2025 |
2000 |
4,1 |
5,5 |
Material
| Part |
Material |
| Motor housing |
EN1563; EN-GJS-400-18 (GGG-40) |
| Motor shaft |
1.0060 (St 60-2) |
| Propeller shaft |
1.7225 fully encapsulated (42CrMo4) |
| Propeller |
Reinforced solid polyurethane |
| Coupling bracket |
DIN 17 445; 1.4408 (CF-8M), (AISI 316) |
| Fasteners |
1.4401 (AISI 316) |
