Series XFP 105J – 600X

Sulzer submersible sewage pump XFP 105J – 600X

Sulzer submersible sewage pumps, series XFP are suitable for clear and wastewater, for sewage with sludge containing solids and fibrous material.

Construction

  • Energy saving premium efficiency motor in accordance with IE3 of IEC 60034-30, exceeding EFF1 of CEMEP regulation.
  • The water-tight fully flood-proof motor and the pump section form a compact and robust unit, easy to clean and easy to service.
  • Water pressure sealed connection chamber, with two stage cable entry, protected against excessive cable tension and bending.
  • Bimetallic thermal sensors in the stator which open at 140 °C.
  • Rotor and rotor shaft dynamically balanced, upper and lower bearings lubricated-for-life, maintenance-free.
  • Triple shaft sealing.
  • Upper and lower sealing by means of a silicon carbide mechanical seal, independent of the direction of rotation.
  • Inspection chamber with sensor for moisture protection to indicate water leakage through mechanical seal.
  • Option: Blockage- and maintenance-free internal closed looped cooling system.
  • Cooling medium: Glycol – water mixture (standard for PE6 range).
  • Hydraulic parts with various impeller options: 2-or 3-channel Contrablock, 2-or 3-channel closed or 3-channel skew.
  • These pumps are built as standard in ATEX explosion-proof version in accordance with international standards e.g. Ex d IIB T4/ATEX II 2Gk.

Hydraulics

You have the choice of the following hydraulics in the range of DN 100 to DN 600 discharge.

Hydraulics/ Impeller type

XFP 105J CB2 XFP 150M CB2
XFP 155J CB2 XFP 151M CB2
XFP 205J CB2 XFP 205M CB2
XFP 206J CB2 XFP 250M CH2
XFP 255J CB2 XFP 305M CB2
XFP 305J CB2 XFP 306M CB2
    XFP 351M CH3
    XFP 405M CB2
    XFP 400R CH3
    XFP 500U CH3
    XFP501U SK3
    XFP 600V CH3
     XFP 600X  SK3

CB... = Contrablock, CH...= closed channel, SK...= skew;
last digit (2 or 3) = Number of impeller vanes

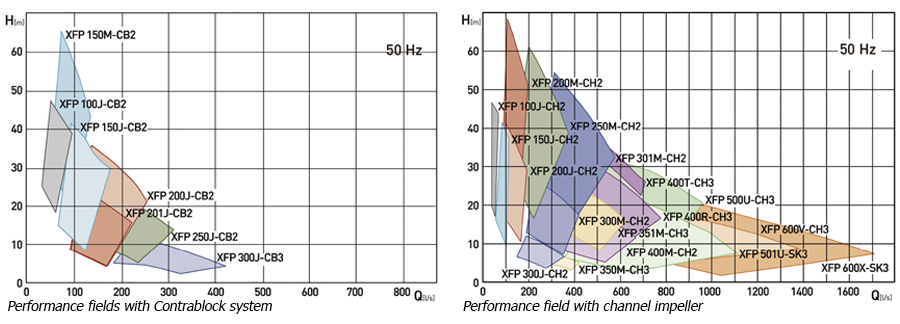

Performance field

Motor

Water pressure sealed premium efficiency motors, (3-phase, squirrel cage induction motors), from 15 to 350 kW and, depending on hydraulic requirements as 4- to 12-pole versions.

Voltage: 380...420 V, 3~, 50 Hz (other voltages on request).
Insulation material: H (motor winding protected by temperature sensor 140 °C).
Temperature rise: According to NEMA class A up to 100kW and class B above.
Protection type: IP68.
Start-up: direct on line (DOL), star-delta, VFD or soft starter.



Standard and options

Description Standard Option
Max. ambient temperature 40 °C 60 °C
Max. submergence depth 20 m
Mains voltage 380...420 V/50 Hz Other voltage on request
Voltage tolerance multi-voltage ± 5%; 400 V ± 10 %
Insulation class H (140) H (160) (not for explosion-proof)
Start-up DOL (direct on line), star-delta or soft starter
Approval non-Ex  Ex/ATEX*
Cables HO7RNB-F EMC shielded cables
Cable length 10 m 15 m, 20 m, other length on request
Mechanical seal (medium side) SiC-SiC (NBR) SiC-SiC (Viton execution)
Mechanical seal (motor side) SiC-SiC
O-rings NBR Viton
Preparation for lifting hoist Lifting hoop Lifting hoop in stainless steel*
Protective coating Two component coating epoxy resin Special coatings on request
Cathodic protection   Zinc anodes on request
Installation Wet-well Dry-well vertical/horizontal
Motor cooling Cooling by surrounding medium Closed loop cooling system**
Moisture sensor motor housing/connection chamber PE3, PE6 PE4, PE5
Moisture sensor inspection chamber PE4-PE6
Vibration sensor   PE4-PE6

* standard for PE3 ** standard for PE6

Motor protection

X = Standard; O = Option; * PTC to be used when operated via VFD ** Not avalable for PE3

PE3 to PE6



Ex

Ex VFD drive

Winding

Bi-metallic switch

Thermistor (PTC)

PT 100

X

O

O**

X*

O*

O**

Seal protection



Inspection chamber

Motor housing

Connection box

X**

O (X for PE3 and PE6)

O** (X for PE6)

O**

X

O** (X for PE6)

Temperature bearing

upper/lower





Bi-metallic switch

Thermistor (PTC)

PT 100

Vibration sensor

O** (X for PE6)

O**

O**

O**

O** (X for PE6)

О**

O**

O**

Materials

Motor

Standard

Option

Connection chamber EN-GJL-250
Cooling chamber EN-GJL-250
Cooling jacket 1.0036 (PE4-PE6)*
Motor housing EN-GJL-250
Motor shaft 1.4021 1.4462
Fasteners (medium contacted) 1.4401
Lifting hoop (PE3) 1.4401
Lifting hoop (PE4 & PE5) EN-GJS-400-18 1.4470
Lifting hoop (PE6) 1.0553 1.4462

Hydraulics

Standard

Option

Volute EN-GJL-250 1.4470
Impeller EN-GJL-250 1.4470**
Bottom plate (only CB version) EN-GJL-250 1.4470**
Shroud (XFP 501U and 600X) EN-GJL-250
Wear ring (only CH version) EN-GJL-300 1.4581
Wear ring impeller (only CH version)   1.4571

Connection sys. (wet)

Standard

Option

Pedestal EN-GJL-250 Non sparking
Fastening elements Stainless steel
Protective coating Epoxy resin based
Guide rail Galv. steel Stainless steel
Pipe retainer EN-GJS-400-18 1.4470

Connection sys. (dry)

Standard

Option

Support frame 1.0036 Galv. steel

* PE3=EN-GJL-250 ** or EN-GJL-250 flame hardenend for CB version
